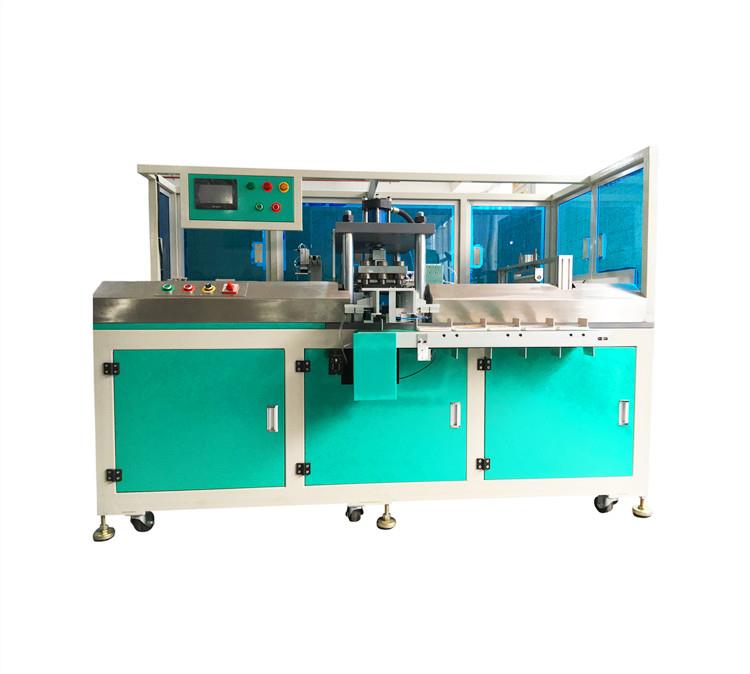

The machine adopts PLC program system to control operation,with operations displayed on the user-friendly HCI touch screen and the hydraulic as the punching power. The bidirectional positioning of the X axes and Y axes in the plane is realized, and the punching precision is not affected by the cutting precision of the material edge, so that the positioning accuracy is less than ±0.10 mm.The machine is suitable for punching large layouts and is fast. Automatically stacked in sequence after die cutting.
Power Source: Hydraulic/Servo system
Place of production: Shenzhen, China (Mainland)
Voltage: 380V/220V optional
Dimension(L*W*H): 2700x1300x1620 mm
Punching speed: About 12000 PCS/H
Punching method: Hydraulic or servo motor
Guaranty: 1 year
A: High-sensitivity photoelectric sensor is matched with the imported ball screw to perform feeding, with adjustable position parameters of each punching point and high precision.
B: The hydraulic is used as punching power with low noise and stable pressure, and meanwhile the pressure and punching speed can be adjusted. It can cut multiple sheets at the same time and Increased production.
C: The advanced card collecting system can automatically realize arrangement and collection in a certain order.
Total Power: 6.5KW
Air Supply: 6kg/cm²（anhydrous）
Punching Precision: ±0.1mm
Applicable Materials: PVC，Mixed material
Applicable layout: Based on customer's needs
Number of operators: 1 person
Control Mode：PLC program ＆ Servo system
Packaging and delivery
Packaging details: Standard wooden box and vacuum packaging
Export port: Shenzhen/Guangzhou/Shanghai/Ningbo
Delivery time: Shipped within 50 days after payment
A:Provide consulting and technical support
B: Sample test for free
C: Invoice and Contract confirmation
A: Operation manual and video introduction
B: Technicians can receive training at my factory
C: Engineers available for overseas if necessary
1.Q: If I want to get a quote, what information should I provide to you?
A: Max and Min size of pruduct in mm
B: Thickness and specification of materials
C: The layout of the product
2.Q: Are you a manufacturer?
A: Yes. we have been manufacturing such machines over 10 years. We have a professional team and a wealth of experience. Also we are a professional exporter.
3.Q: What about the payment terms?
A: After signing the contract, 30%T/T deposit will be paid in advance, and the remaining 70%T/T will be paid before shipment. Other payment methods are optional.
4.Q: What is the warranty period?
A: Oneyear warranty after sales .During the warranty period, we will repair or replace damaged parts for you free of charge.
5.Q: What is your after-sale service?
A: Any questions will be responded within 24 hours by Email, Skype, phone call or facebook. In addition, we have professional engineer available for overseas service.
6.Q:What is the delivery time?
A: Mostly it takes about 50 workdays after receiving the deposit and confirming the drawing or samples as required.
